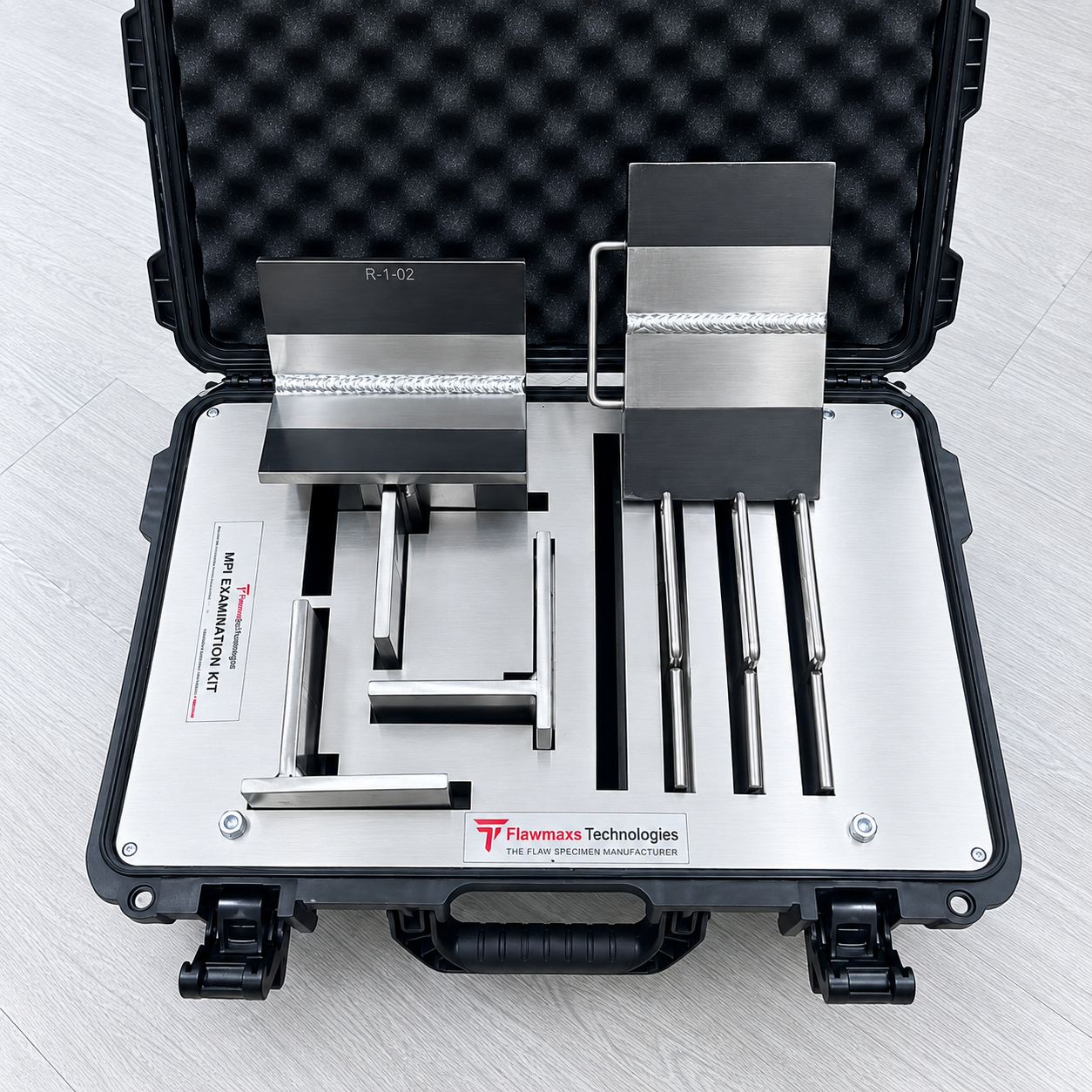

The MPI KITS was design for the beginner in the Welding Inspection technologies. We’re developing easy technique for the Candidate to understanding MPI Inspection Method. The MPI Kits incorporated 3 type of cracks for practicing. All come in one (1) Case.
- 8 Pcs Demo Specimen ; Plate Butt : 150mm x 250mm x 8mm
- 3 Crack at each specimen : Material : Mild Steel Plate
Numbers of Flaws incorporated
- Marking Scheme
- Quality : Master Report & CAD Drawing
- 3 Flaws ( Crack ) in each specimen
- Easy storage, less consumables use and easy cleaning.
Weight : Approximate : 26 Kg
Come with PP safety case
Delivery : 2 week
We also sell the individual specimen ( loose items)
Download : Catalogue
Individual MPI Specimen
Butt Joint Plate
SPECIFICATION
Material : Carbon Steel
Size : 200mm x 200mm x 8mm(w.t)
No of Defect : Min 3 (Cracks)
(or base on customer spec)
“T” Joint Plate
SPECIFICATION
Material : Resin (Plastic)
Size : 200 x 200 x 140 x 8mm(w.t)
No of Defect : Min 3 (Cracks)
(or base on customer spec)
Butt Joint Pipe
SPECIFICATION
Material : Resin (Plastic)
Size : Dia 160mm x 200mm x 8mm(w.t)
No of Defect : Min 3 (Cracks)
(or base on customer spec)
