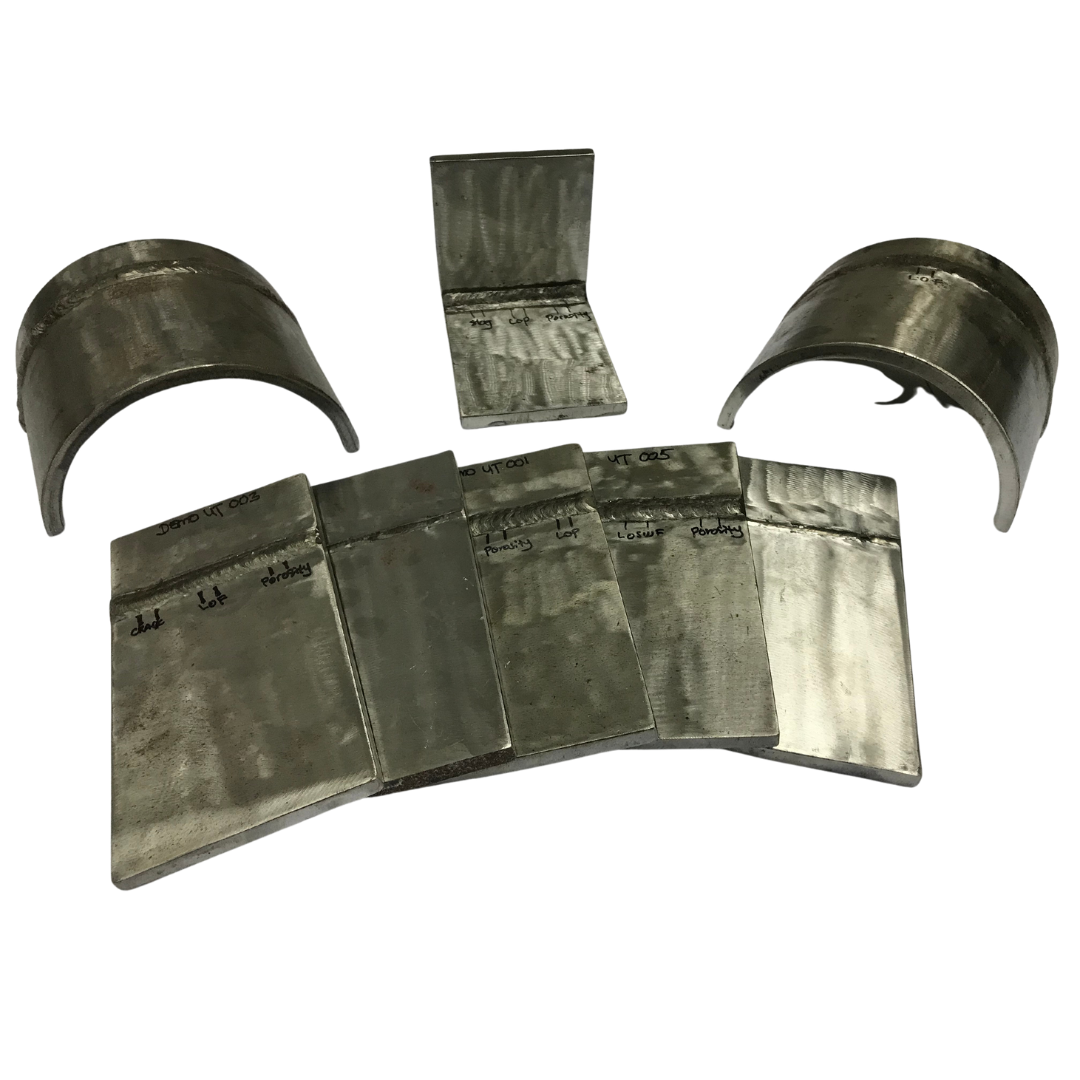

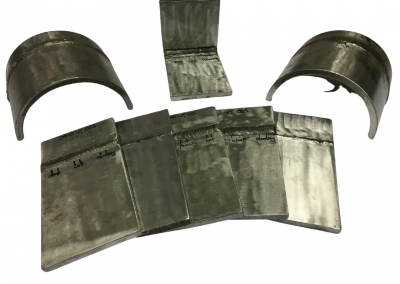

The Visual Specimen Training Kits was design for the beginner in the WELDING INSPECTION technologies. We are developing specimen made from Polyethylene (Plastic) incorporated most severe welding flaws for the student to practicing. All come in one (1) case.
- 8 sets of Demo Plates (Size : 300 x 200 x 8mm)
- 4 sets of Plates (Size : 200 x 200 x 8mm)
- 4 sets of T Joints (Size : 200 x 200 x 100 x 8mm)
- 4 sets of Pipes (Size : 1/2 Moon Dia 160mm x 200mm x 8mm (w.t))
Numbers of Flaws incorporated
- Marking Scheme
- Master Report & CAD Drawing
- 3 Flaws ( Crack ) in each specimen
- Easy storage, less consumables use and easy cleaning.
Weight : Approximate : 26 Kg
Come with PP safety case
Delivery : 2 week
We also sell the individual specimen ( loose items)
Download : Catalogue

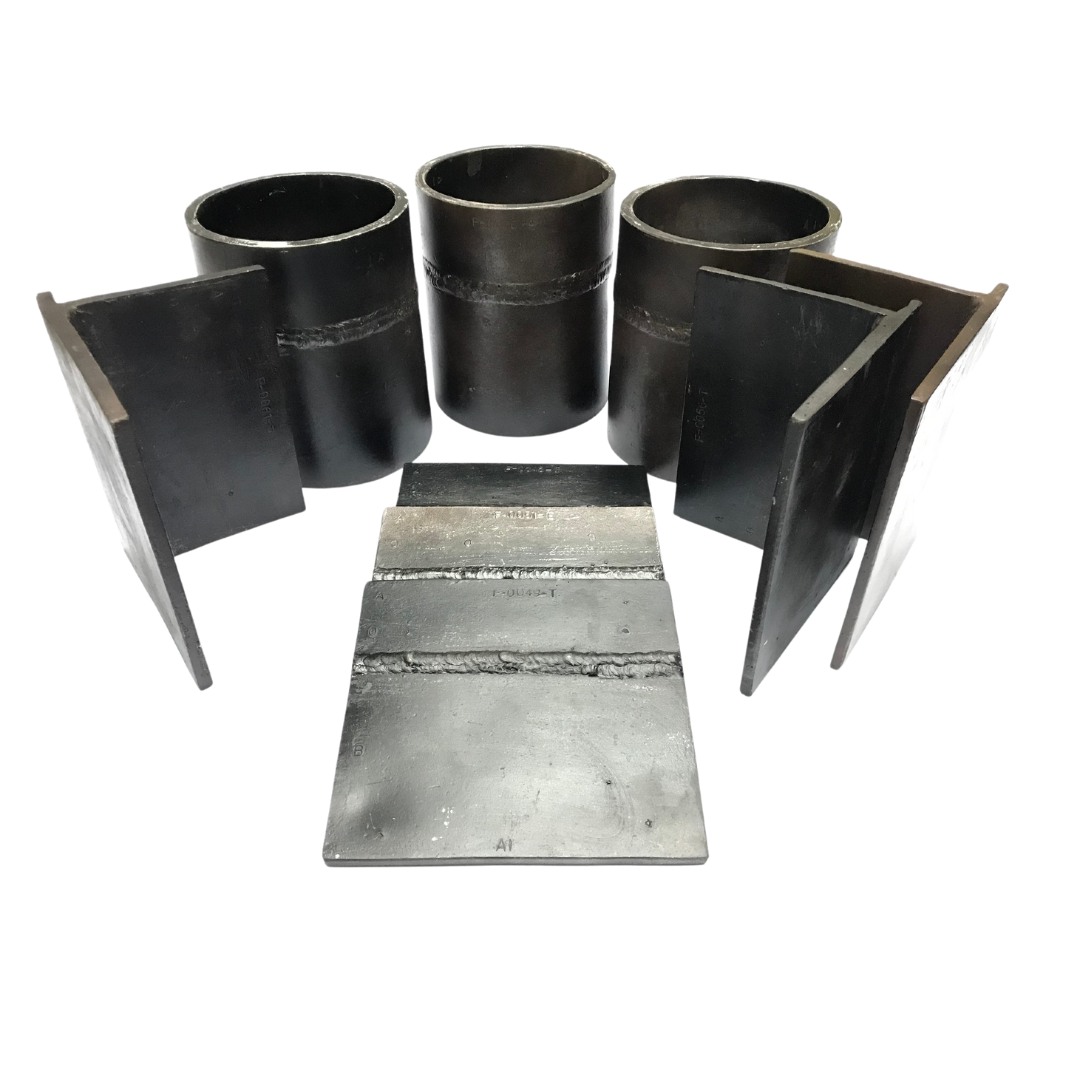

Individual Visual Specimen
Butt Joint Pipe
SPECIFICATION
-
Material : Resin (Plastic)
-
Size : Dia 160mm x 200mm x 8mm (w.t)
-
No of Defect : Min 3
-
Weight : 500g
Butt Joint Plate
SPECIFICATION
-
Material : Resin (Plastic)
-
Size : 200mm x 200mm x 8mm (w.t)
-
No of Defect : Min 3
-
Weight : Approximate 500g
“T” Joint Plate
SPECIFICATION
-
Material : Resin (Plastic)
-
Size : 200mm x 200mm x 140mm x 8mm (w.t)
-
No of Defect : Min 3
-
Weight : 500g
